What is the Best Underground Wire for Your Electrical Needs?
When it comes to choosing the right underground wire, the decision can be daunting. Experts like John Smith, a renowned electrical engineer, emphasize the importance of this choice. He often states, "The right underground wire can make or break your project."
Selecting underground wire requires careful consideration of several factors. Different environments and applications demand distinct characteristics. For instance, wire material, insulation type, and gauge all play crucial roles in performance. A mistake in selection can lead to significant issues, including electrical failures or safety hazards.
Moreover, the options available in the market can be overwhelming. Not all wires are created equal, and selecting the cheapest option may not provide the durability needed. Quality matters, especially when buried underground, where repairs can be costly and complicated. Acknowledging these challenges is key to making informed decisions about underground wire for any electrical project.
Understanding Different Types of Underground Wires for Electrical Use
When selecting underground wire for electrical needs, understanding the types available is crucial. There are several key types of wire typically used. For instance, UF (Underground Feeder) cable is often used for outdoor circuits. It can withstand moisture, making it suitable for damp environments. However, it might not hold up well under extreme temperature fluctuations.
Another common choice is direct burial wire. This type is designed for direct installation in the ground without additional conduit. According to industry reports, direct burial wire can last up to 30 years when properly installed. Still, it's essential to consider local soil conditions. In some cases, rocky or highly acidic soils can lead to faster degradation.
Thermoplastic insulated copper wire is also popular. It offers good conductivity and durability. Yet, it can be more costly than alternatives. Interestingly, a survey showed that nearly 40% of electricians prefer copper over aluminum due to long-term reliability, despite the upfront costs. While these options provide benefits, the choice ultimately depends on specific environmental conditions and installation practices. Understanding these aspects better can lead to improved decision-making in project planning.
Key Factors to Consider When Selecting Underground Wire
When selecting underground wire for your electrical needs, several critical factors must be considered. The type of insulation plays a significant role. Using the right material prevents damage. Common options include thermoplastic and thermoset. Each has unique properties and applications. Additionally, voltage rating is essential. Ensure the wire can handle the expected voltage. Failing to match this could lead to potential hazards.
Another factor is the wire’s gauge. Thicker wire carries more current but can be cumbersome to install. Conversely, thinner wire may not support your electrical load effectively. Depth of burial is also important. Local codes often dictate how deep wire must be buried. Ignoring these guidelines can result in costly repairs or safety issues.
Lastly, consider environmental factors. Factors like soil type and moisture levels can affect wire longevity. For instance, sandy soil may provide little support. Conversely, rocky soil might make installation challenging. Reflecting on these aspects will help you choose wisely. It’s crucial to assess all these details thoroughly. Don’t rush; take your time to weigh your options.
What is the Best Underground Wire for Your Electrical Needs? - Key Factors to Consider When Selecting Underground Wire
| Wire Gauge |
Material |
Voltage Rating (V) |
Temperature Rating (°C) |
Typical Applications |
| 12 AWG |
Copper |
600 |
90 |
Lighting, Small Power Applications |
| 10 AWG |
Copper |
600 |
90 |
Outbuildings, Subpanels |
| 8 AWG |
Copper |
600 |
90 |
Heavy Equipment, Large Motors |
| 6 AWG |
Copper |
600 |
90 |
High Capacity Applications |
| 12 AWG |
Aluminum |
600 |
90 |
Utility Connections |
Comparing Copper and Aluminum Underground Wires
When selecting the right underground wire, copper and aluminum are two popular choices. Copper is known for its superior conductivity. According to the International Copper Association, copper offers a conductivity level of nearly 100%. This makes it highly efficient for electrical applications. However, copper is also significantly more expensive than aluminum, which raises questions about cost-effectiveness, especially for larger projects.
Aluminum, on the other hand, presents a budget-friendly option. Its conductivity is about 60% that of copper, yet it is lightweight and less expensive. A study published by the Electrical Safety Foundation International highlights that aluminum wires can be suitable for specific applications with proper sizing and installation. Still, they can require larger diameters to match the current-carrying capacity of copper wires. This necessitates careful planning to avoid oversizing and related costs.
Choosing between these two materials involves weighing price against performance. While copper may provide better conductivity, it can also lead to higher installation and material costs. Aluminum appears tempting due to its lower pricing, but mismanagement can lead to long-term issues like overheating. Each option has its strengths and weaknesses, and understanding them can guide your decision more effectively.
Comparison of Copper and Aluminum Underground Wires
This chart compares copper and aluminum underground wires based on two important parameters: conductivity and weight. As shown, copper has a higher conductivity and weight compared to aluminum, making it a preferred choice for many electrical applications despite being heavier and more expensive.

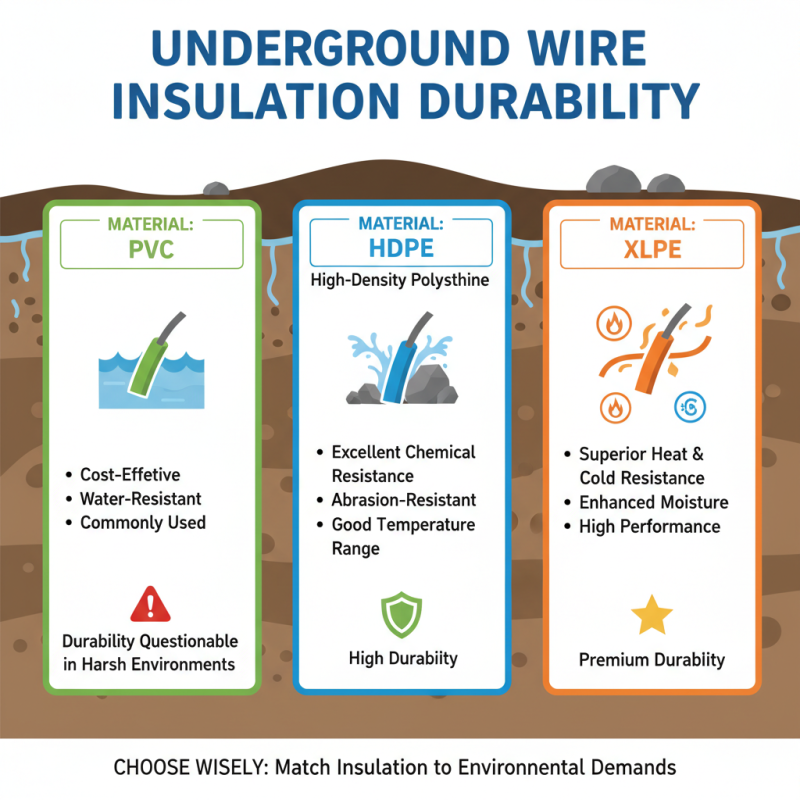

Evaluating Insulation Types for Underground Wire Durability
When choosing underground wire, insulation type plays a crucial role. Different materials offer varying levels of protection against moisture, chemicals, and temperature extremes. Polyvinyl chloride (PVC) is popular due to its cost-effectiveness and resistance to water. However, its durability can be questioned, especially in harsh environments.
Cross-linked polyethylene (XLPE) is another option. Studies show that XLPE can withstand higher temperatures and offers improved tensile strength. According to industry reports, XLPE wires can last up to 25 years in underground installations, compared to PVC's average lifespan of 15 years. This difference is significant for long-term planning.
Another consideration is the exposure to soil conditions. Corrosive soil can weaken insulation. A report indicates that nearly 30% of failures in underground wiring systems are due to inadequate insulation. It's crucial to assess the specific environment before making a choice. Investing in the right material is essential to avoid costly replacements down the line. Consider soil type and moisture levels to make informed decisions.

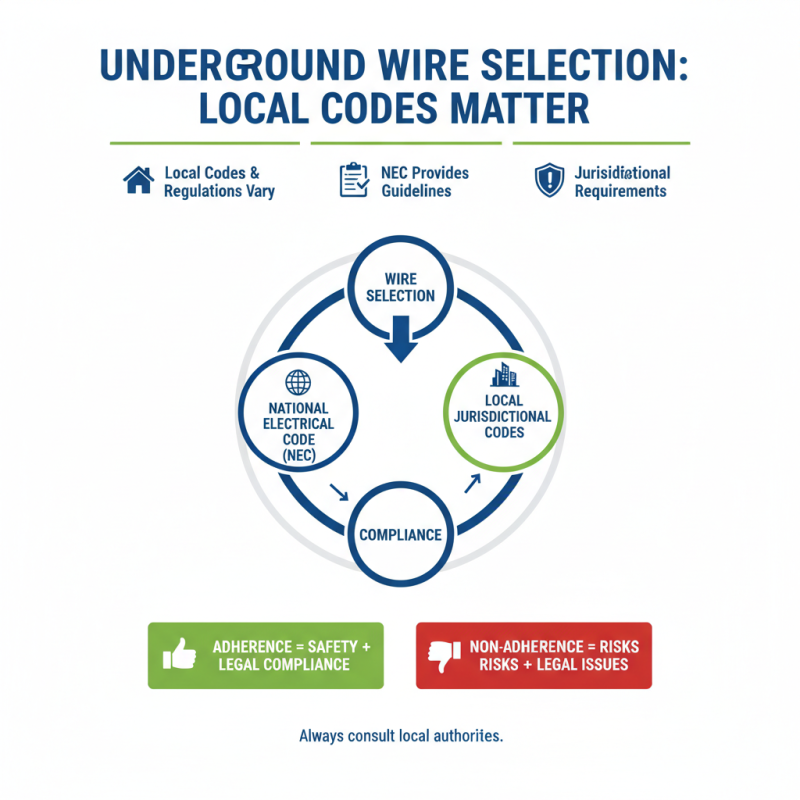

Local Codes and Regulations Affecting Underground Wire Selection
When selecting underground wire, local codes and regulations play a crucial role. These can vary significantly from place to place. For instance, the National Electrical Code (NEC) provides guidelines. However, local jurisdictions often introduce additional requirements. Not adhering to these can lead to safety issues and legal complications.
In many areas, the use of insulated conductors is mandated. Some regions may even have specifications for wire depth. A common requirement is burying wires at least 24 inches deep, but it can be more in certain locales. Reports indicate that improper installation can lead to a 30% increase in electrical issues. Following local guidelines helps avoid such risks.
It's vital to stay updated on local regulations. Lack of awareness can be risky. The costs associated with non-compliance can be substantial. Some homeowners underestimate the financial impact. A fine or a forced reinstallation can add unanticipated expenses. Emphasizing adherence to local codes enhances safety and reliability in electrical setups.
